30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery

JNTECH RENEWABLE ENERGY CO.,LTD
Contact Now

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery

  • 1
  • 2
  • 3

Place of Origin : Anhui, China (Mainland)

Brand Name : JNTECH

Model Number : JNP30KH

Supply Ability : 1000 Set/Sets per Month

Packaging Details : Standard export carton packing with wooden-pallet.

MOQ : 2 Set/Sets

Price : $2,200.00 - $2,600.00 / Sets

Dc. Max. input voltage : 880V

Recommended MPPT voltage : 460-850VDC

Max. MPPT efficiency : 99%

Max. motor output power : 30KW

Rated output voltage : 380-460Vac three phase

Output frequency Range : 0-50/60Hz

Communication : RS485/GPRS

Display : LCD

Protection level : IP65

Port : Shanghai port, Ningbo port, Nanjing port

Contact Now

30kW/40HP AC 380V 50Hz Solar Water Pumping Inverter IP65 Without Battery



1. Introduction of JNTECH three phase AC solar pump inverter

Jntech solar pumping inverter is AC three phase 50/60Hz inverter, there are two series of solar pumping

inverter,output 220V-240V inverters range from 1.1kw to 4kw. and 380-460V inverters range from 2.2kw

to 132kw.

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery

2.Features of Three phase AC solar pump inverter

1), Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.

     efficiency is more than 99%.

2), With IP65 design, It can be installed outside with good waterproof.

3), Matching for any ordinary three phase 50Hz/60Hz pumps.

3), Full protection function can keep the system always in safe operation.

4), Three years warranty time.

5),Modular design,easy to install,operate and maintain.



3. Technical parameter of solar pump inverter

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 67A
Max. MPTT efficiency 99%
Number of Strings 1
Max. applicable motor output power 30KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 57A
Dimension(W/H/D) 460x580x251mm
weight 31.5kg
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method Force cooling
Display  LCD
Communication interface RS485
Altitude  3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800

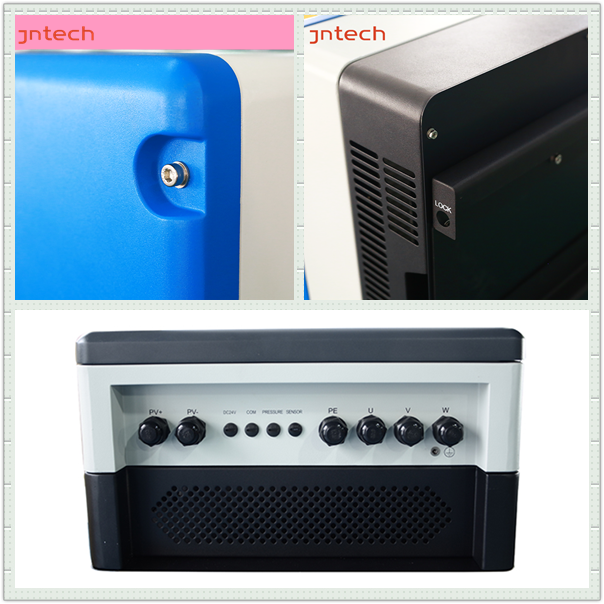

4. Product details of 50HP solar pump inverter

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery



5.Application of solar pump inverter

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery



6.Project on-site

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery



Packaging & Shipping





By sea  Delivery from Shanghai or Ningbo or Nanjing seaport
By air Departure from Shanghai Pudong Airport
By express By TNT/DHL/FedEx

Company information

30kW/40HP AC 380V 50Hz Solar Powered Watering System IP65 Without Battery

JNTECH is pioneer of offering “Solar Energy Storage System technology for residential use”, expanded solar industry development mode. Company also be in charge of drafting national industrial standards of solar pump inverter/system, solar sprinkling/drip irrigation system, residential solar system and etc.

JNTECH developed solar off-grid inverter, solar pump inverter, solar floating platform and relative solar products all have passed national or international certification, already have been widely used in more than 60 countries worldwide.

Focusing on renewable energy application’s high-tech technology, JNTECH RENEWABLE ENERGY CO.,LTD is one international enterprise, which integrate intelligent power electronics products’ R&D, manufacture, sales and service. Successively set up branch/subsidiary office in Pakistan, Kenya, Sudan, Dubai, Philipine, Morocco,and Mexico.

Company possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.

Adhering to the idea of“Create green energy future, Ensure the sustainable social development”, JNTECH takes scientific development view as guideline; Creating green eco-friendly new energy as duty, devoting to promoting the new energy industry development in the world. With non-stop innovation, JNTECH keep serving society, people and the national strategic goal of sustainable development.

Welcome to contact us!
