1.1kw Dc To Ac Solar Water Irrigation System , Solar System For Submersible Pump

Name: 11kw Dc To Ac Solar Water Irrigation System Solar System For Submersible Pump
Brand: JNTECH
Price: 0.80 USD

Buy cheap 1.1kw Dc To Ac Solar Water Irrigation System , Solar System For Submersible Pump product

Place of Origin : Anhui, China (Mainland)

Brand Name : JNTECH

Model Number : JNP1K1L-SJ

Supply Ability : 600 Set/Sets per Month

Packaging Details : Standard export carton packing with wooden-pallet

MOQ : 3000 Watt/Watts

Price : $0.80 - $1.50 / Watts

Specification : Normal

Application : Commercial

Output Voltage (V) : 220V

Load Power (W) : 1.1kW

Work Time (h) : 8hours

Solar Panel Type : Grade A Polycrystalline

Controller Type : DC/AC

Output Frequency : 50Hz

Solar panel : 100w*11pcs*2 strings

Water pump : 1.1kw 220Vac pump

solar pump inverter : 1.1kw

Borehole depth : 82m

Total head : 60m

Warranty : 10 years for PV module, 3 years for inverter

Port : Shanghai port, Ningbo port, Nanjing port

Contact Now

Jntech 1.1kw dc to ac solar water pumping system for submersible pump in South Africa

1. Solar Water Pumping System Introduction

solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panel to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.

1.1kw Dc To Ac Solar Water Irrigation System , Solar System For Submersible Pump

2.Solar pump application

1.1kw Dc To Ac Solar Water Irrigation System , Solar System For Submersible Pump

3. solar pump system feature

Reliable solution provider in non-electricuty and water deficient area.
Wide application with all kinds of PV modules and three-phase AC pumps
IP65 for outdoors application
Max. operation temperature 60℃
GPRS remote monitoring for real time operation status and control on/off
Excellent performance during cloudy weather with 5% more water output compared to competitors
ROI is only less than 2 years compared to diesel generator
Full automatic unattended operation with perfect protection functions for long lifespan 25 years
3 years warranty time for complete system, 10 years for PV modules

4. Solar panels

Polycrystalline 330w(Vmp=38.1 V, Isc=9.14A) solar panels are used in system configuration

1.1kw Dc To Ac Solar Water Irrigation System , Solar System For Submersible Pump

5. Solar pumping inverter

d.c. Max. Input Voltage	440Vdc
Recommended MPPT Voltage	150~400Vdc
d.c. Max. Input Current	8A
Max. Motor Output Power	1.1kW
Rated Output Voltage	220 ~240 Vac
Output Frequency	0~50/60Hz
Rated Output Current	5.5A

6. Pump Specifications

We choose pump according tp project head and water requirement.

1.1kw Dc To Ac Solar Water Irrigation System , Solar System For Submersible Pump

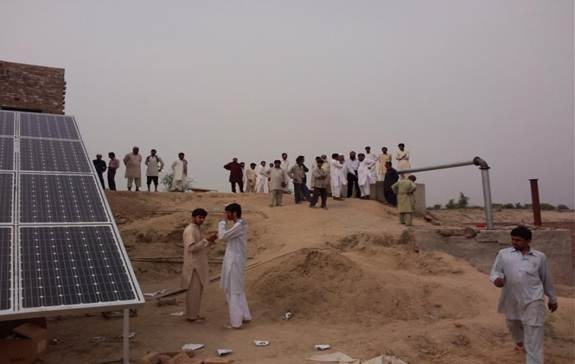

7. Project on-site

1.1kw Dc To Ac Solar Water Irrigation System , Solar System For Submersible Pump

8.Packing & Shipping

By sea	Delivery from Shanghai or Ningbo or Nanjing seaport
By air	Departure from Shanghai Pudong Airport
By express	By TNT/DHL/FedEx
