1. Jntech solar pump inverter
Jntech solar pump inverter converter DC energy from solar panles to AC energy to drive any AC pumps
to pump water to water tank or using it directly for agricutural irrigarion, village water supply, etc.
Using AC power pack to hybrid diesel generator input and solar pump inverter.
2. Product features:
1. Adopt advanced IGBT power module
2. Drive power-matched three phase AC pump
3. Adopt advanced IGBT power module
4. High flow system for faster tank fill and perfect water output
5. Simple installation and required less maintenance
6. Soft start and soft stop design, can protect pump from rush current
7. Fully automatic operation, high reliability
8. Automatic start and shut off according to solar intensity
9. GPRS remote monitoring for real time operation status and control on/off
10. Reliable solution for agricultural irrigation, daily water, desert control in non-electricity and water deficient area
3. Protection of Jntech Solar Pump Inverter
• Auotmatical dry protection or using water level sensor for dry protection and overflow protection
• Overflow protection
• Lighting protection
• Short circuit protection
• Reverse polarity protection
• Under-voltage, weak sunshine, over-current, over-load, shortage-phase output Protection.
• Water level sensor, no need open the cover.
4. 90kw solar pump inverter parameters
| Max. Input DC voltage | 880Vdc |
| Recommended MPPT voltage | 460-850Vdc |
| Max. Input DC current | 205A |
| Max. MPTT efficiency | 99% |
| Number of Strings | 2 |
| Max. applicable motor output power | 90KW |
| Rated output voltage | 380-460Vac; 3 phase |
| Output frequency range | 0-50/60Hz |
| Rated output current | 171A |
| Dimension(W/H/D) | 654mm*1210mm*465mm |
| weight | 220KG |
| Max. efficiency | 98% |
| Protective class | I |
| Protection degree | IP21 |
| Environment temperature | -25ºC-+50ºC; above 50ºC need derate operation |
| Cooling method | Force Cooling |
| Display | LCD |
| Communication interface | RS485/GPRS |
| Altitude | 3000m; above 3000m need derate operating |
| Noise emission | <50dB |
| compliance | EN50178; IEC/EN62109-1; IEC61800 |

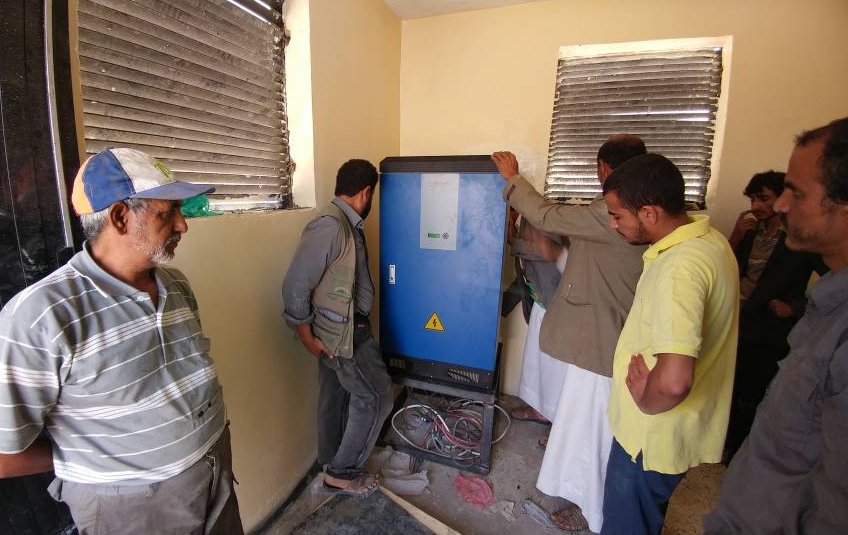

5. ON-Site Projects' Pictures
6. Ralated products
Solar Pump Inverter: 370W to 132kw.
AC Power Pack to hybrid solar input and AC input
Outlet Filter to protect motor.
Pure Sine Way Solar Off Grid Inverter : 1Kva to 5Kva
